Magnetic Rack Funnel Magnets Gripping Magnets Search Magnets Single-Acting Spreader Solenoid Workshop Magnets

This product is a neodymium magnet, also known as NdFeB, Neo or NIB magnet, which is the most widely used type of rare-earth magnet. It has a block rectangular cuboid sheet shape and a super strong magnetism that can be used for various applications in consumer, industrial and technical fields. It is also resistant to extremly temperature up to 80°C, making it suitable for high-temperature environments. This product is made from an alloy of neodymium, iron and boron, with the highest magnetic properties of all permanent magnets. It can be customized to fit your specifications and needs. Order now and get the best quality and price for this product.

Hits :
0
Updatetime :
2023-11-08
Material :
Neodymium magnets
Type :
Permanent
Feature :
Strong / Monopole

contact now

description

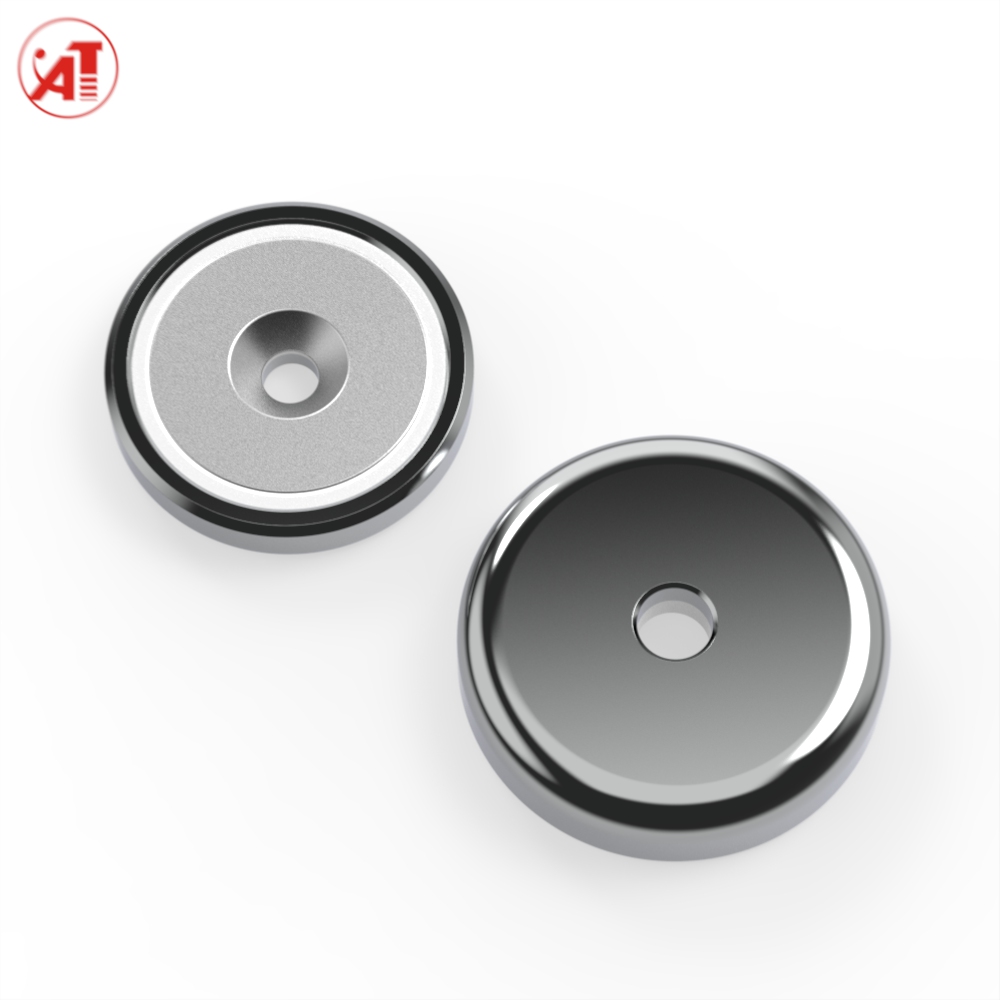

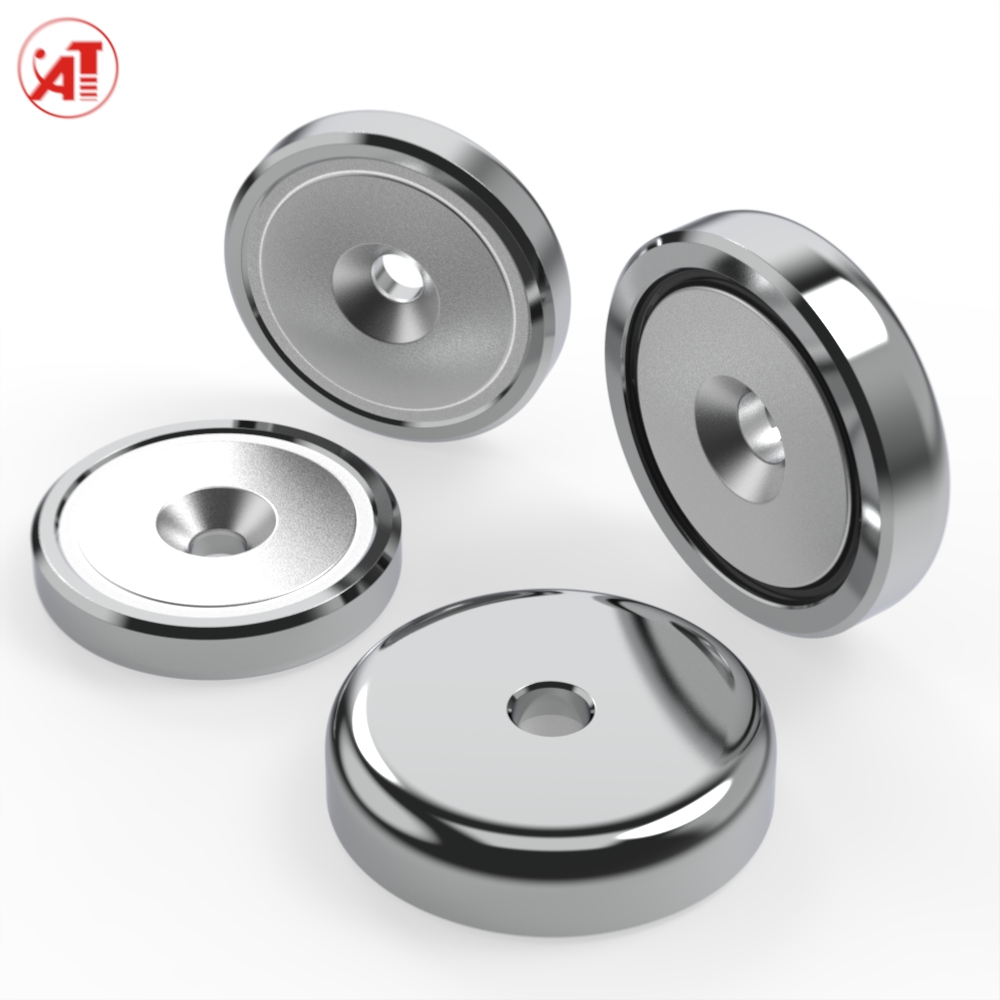

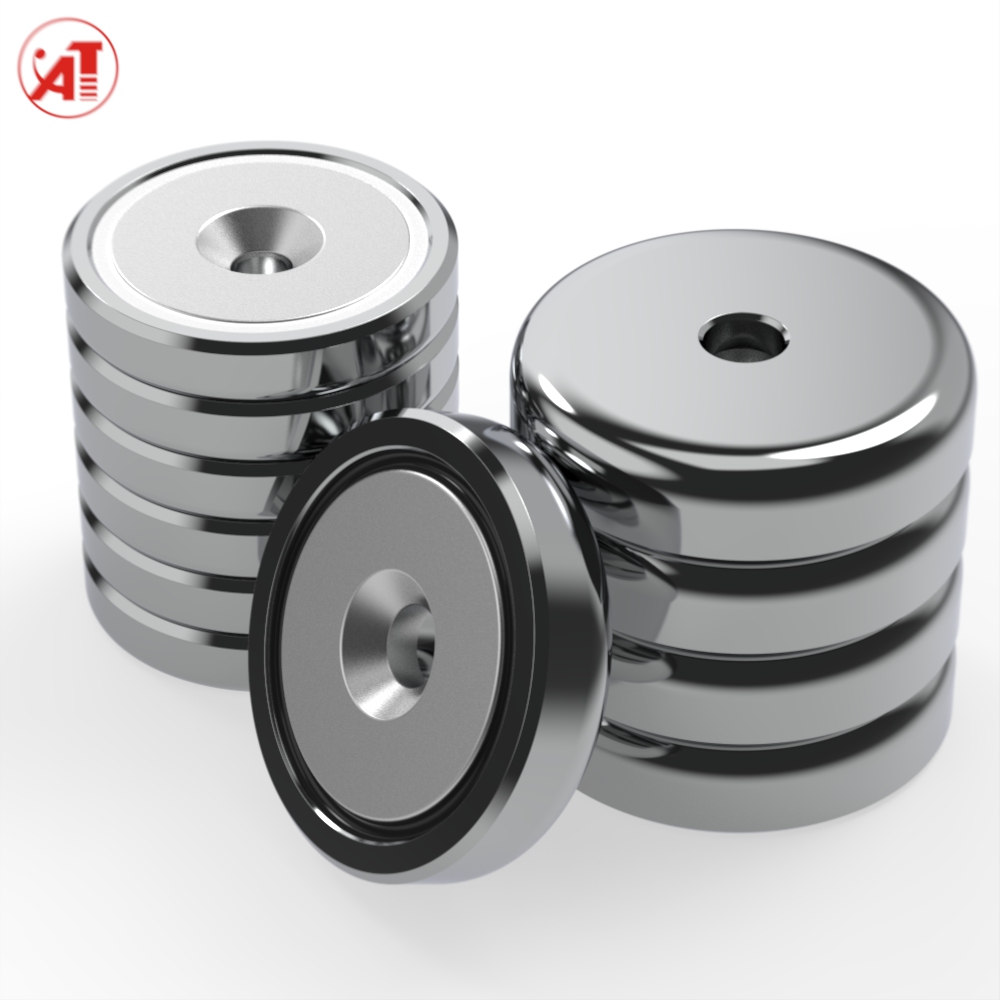

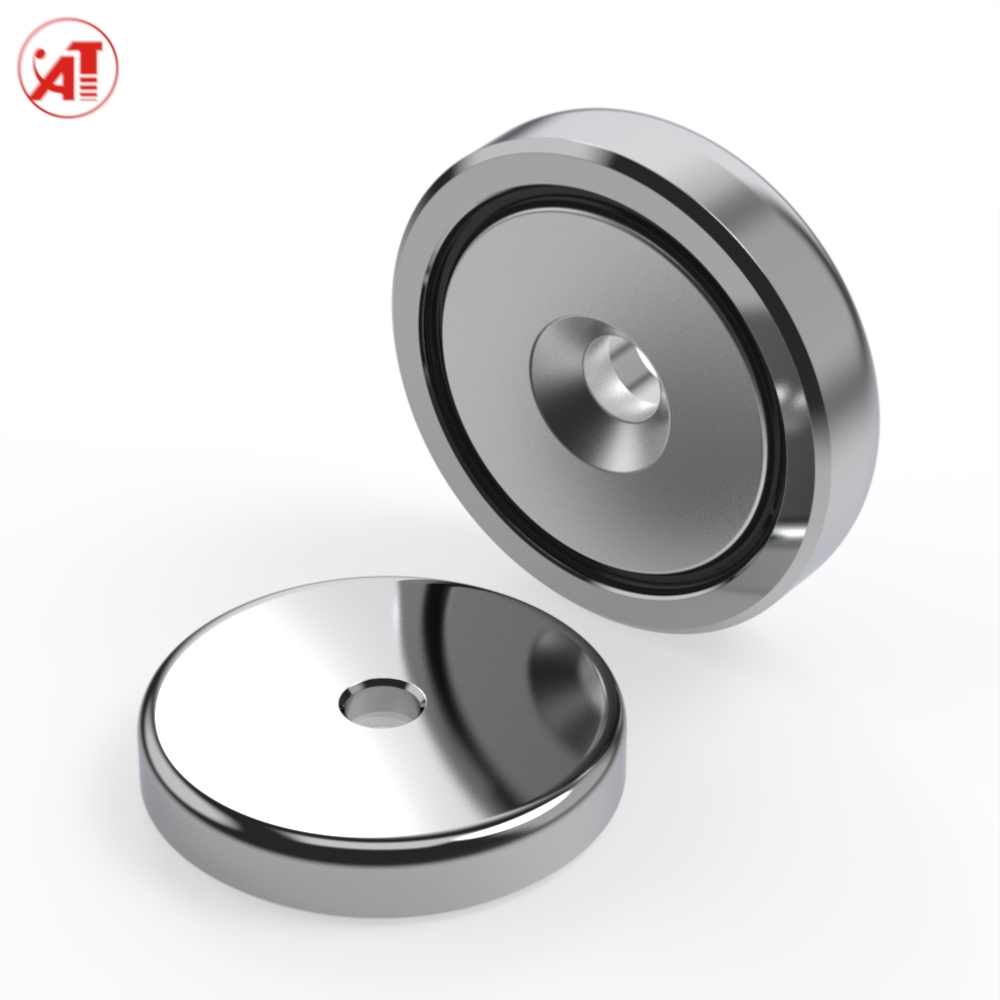

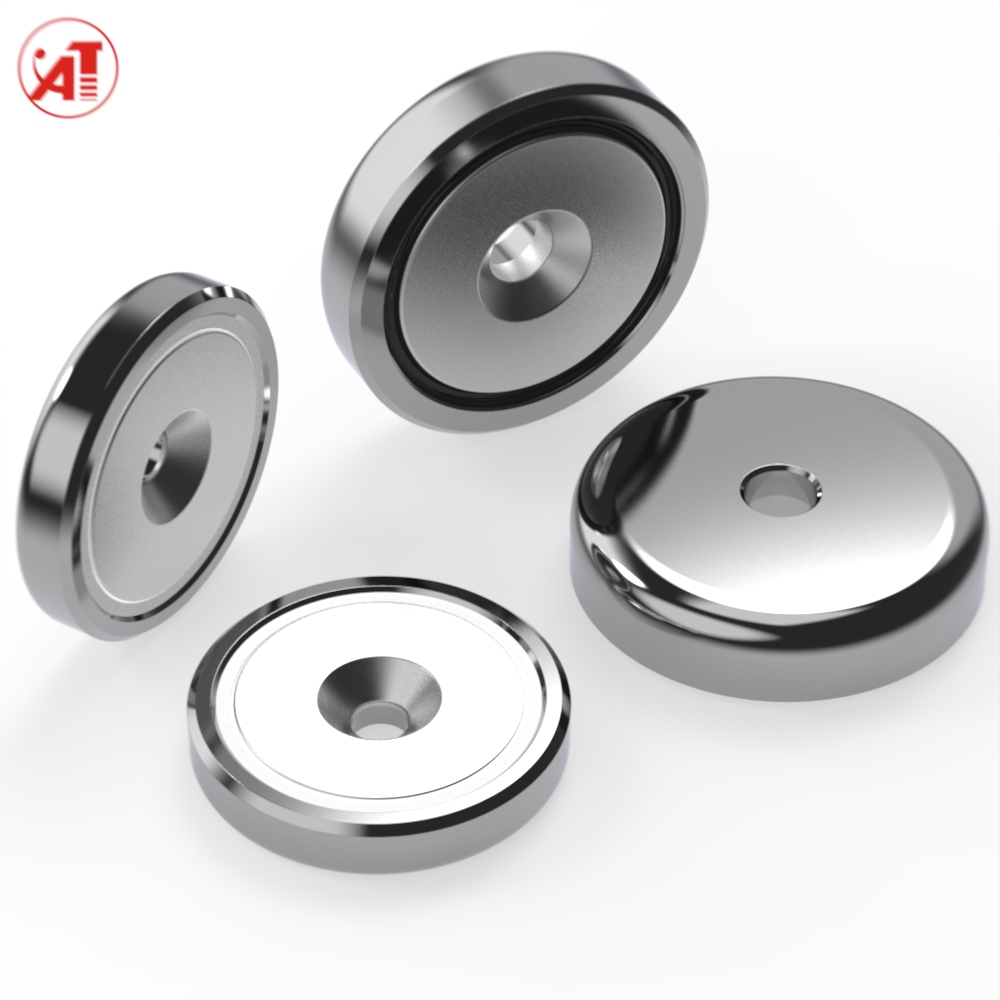

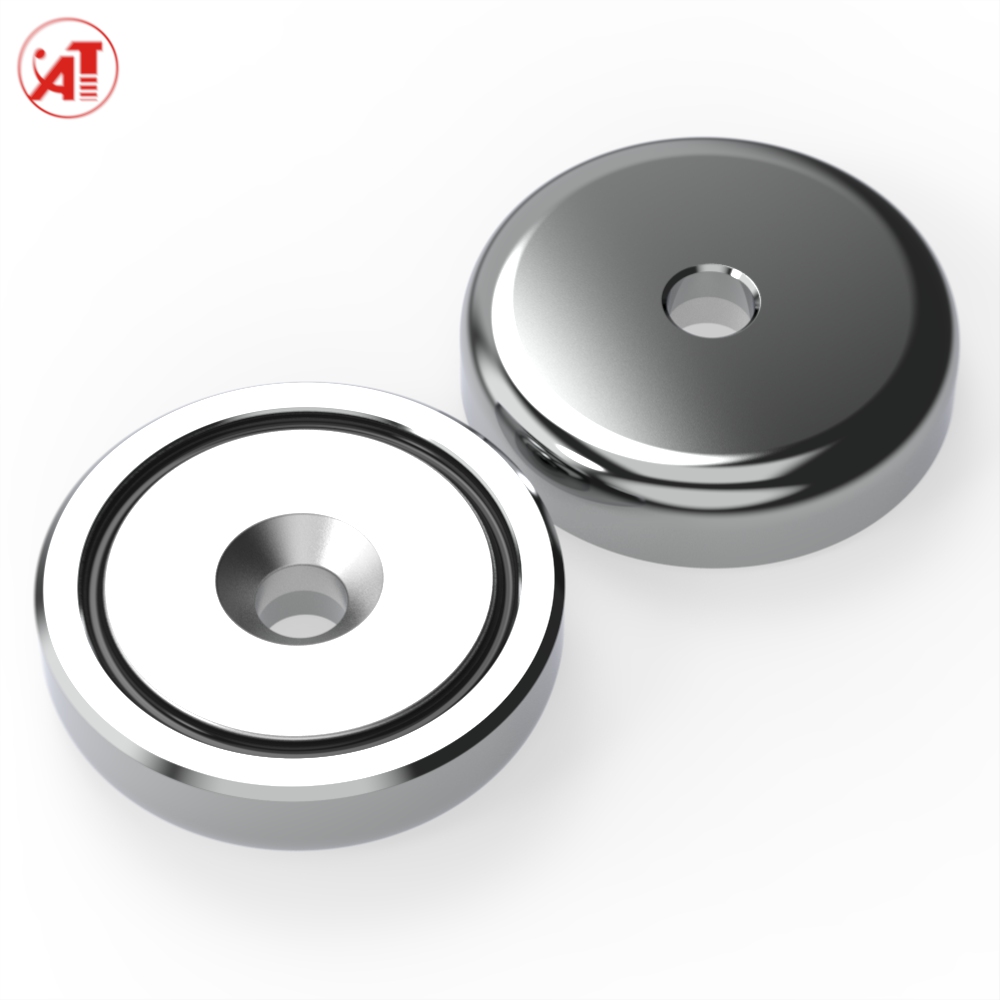

Cylinder/Disc/Round/Washer/Pot shape neodymium NdFeB magnet
Monopole/single-acting/single pole
Normal Ambient Temperature, <80 celsius degrees
Grade: N30/N33/N35/N38/N40/N42/N45/N48/N50/N52/N54
Dimension: D32
Electroplating: Nickel/Epoxy/Zinc/Gold
Magnetizing: Thickness/Diametrical

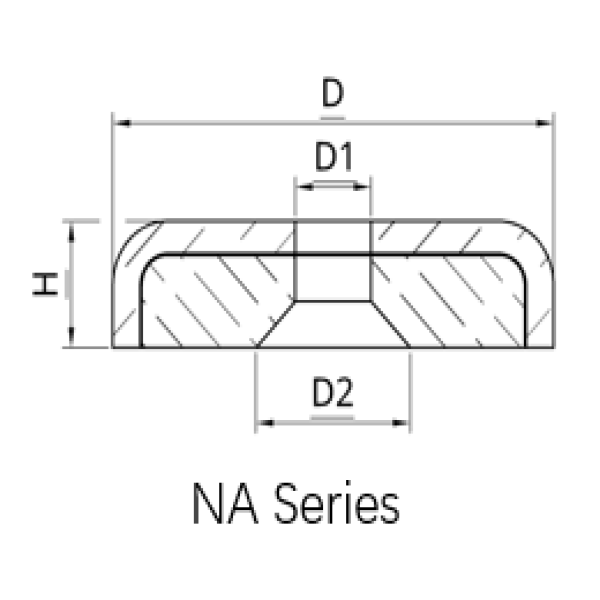

Model	D	D1	D2	H	Weight(g)	Breakaway(kg)
NA16	16	3.5	6.5	5.2	7	6
NA20	20	4.5	8.6	7.2	15	10
NA25	25	5.5	11	7.7	24	20
NA32	32	5.5	11	7.8	39	32
NA36	36	6.5	12	7.6	50	41
NA40	40	6.5	12	7.9	69	52
NA42	42	6.5	12	8.8	77	61
NA48	48	8.5	19	10.8	120	81
NA60	60	8.5	19	15	243	115
NA75	75	10.5	21	17.8	480	163
NA16-1	16	3.5	6.5	5.2	8	6
NA20-1	20	4.5	8.6	7.2	13	10
NA25-1	25	5.5	11	7.7	23	20
NA32-1	32	5.5	11	7.8	38	32
NA36-1	36	6.5	12	7.6	50	41
NA42-1	42	6.5	12	8.8	78	61
NA48-1	48	8.5	19	10.8	113	81
NA60-1	60	8.5	19	15	265	115
NA75-1	75	10.5	21	17.8	537	163

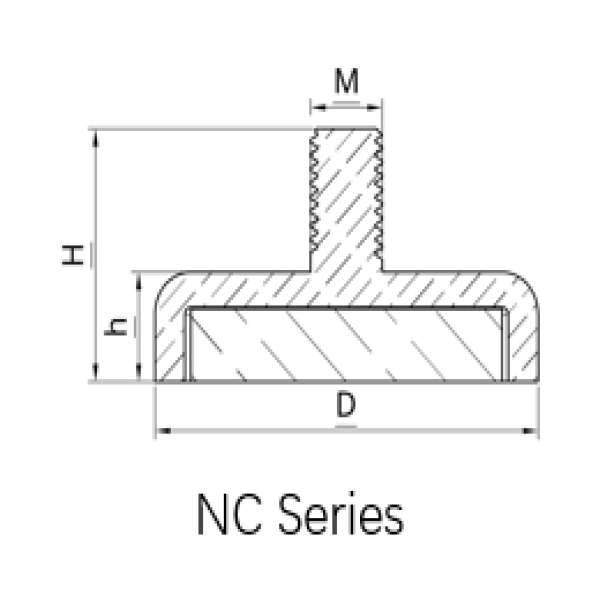

Model	D	M	H	h	Weight(g)	Breakaway(Kg)
NC16	16	4	14	5.2	9	8
NC20	20	4	16	7.2	16	12
NC25	25	5	17	7.7	26	22
NC32	32	6	18	7.8	43	34
NC36	36	6	17.6	7.6	54	41
NC40	40	6	17.7	7.9	75	51
NC42	42	6	18.7	8.8	83	68
NC48	48	8	24	10.8	130	81
NC60	60	8	31.5	15	256	120
NC75	75	10	35	17.8	510	178
NC16-1	16	4	14	5.2	9	8
NC20-1	20	4	14.8	6	15	12
NC25-1	25	5	16.2	6.9	27	22
NC32-1	32	6	17.1	6.8	43	34
NC36-1	36	6	16.7	6.9	55	41
NC42-1	42	6	17.7	7.9	83	68
NC48-1	48	8	22.8	9.6	126	81
NC60-1	60	8	31.5	13.9	282	120
NC75-1	75	10	35	17.9	564	178

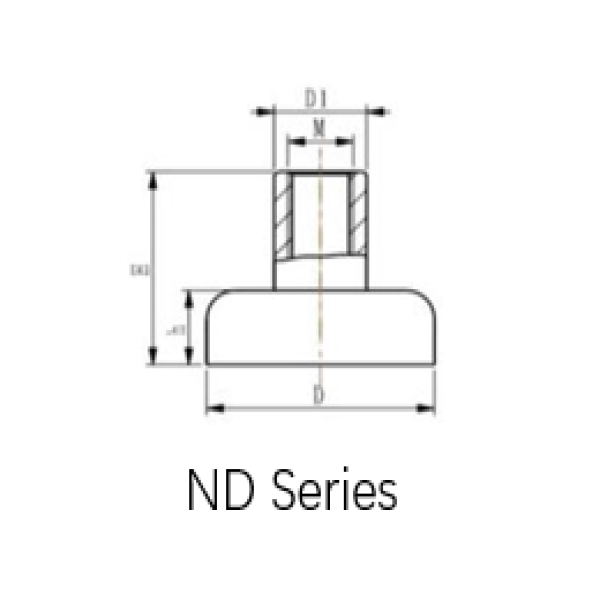

Model	D	D1	M	H	h	Weight(g)	Breakaway(Kg)
ND16	16	6.5	4	13.5	5.2	9	8
ND20	20	6.5	4	15	7.2	17	12
ND25	25	7.5	5	17	7.7	28	22
ND32	32	10	6	18	7.8	45	34
ND36	36	10	6	18.5	7.6	55	41
ND40	40	10	6	18.8	7.9	78	51
ND42	42	10	6	18.8	8.8	84	68
ND48	48	12	8	24	10.8	130	81
ND60	60	12	8	28	15	263	120
ND75	75	17	10	35	17.8	515	178
ND16-1	16	6.5	4	13.5	5.2	10	8
ND20-1	20	6.5	4	13.8	6	15	12
ND25-1	25	7.5	5	16.2	6.9	27	22
ND32-1	32	10	6	17	6.8	45	34
ND36-1	36	10	6	17.8	6.9	58	41
ND42-1	42	10	6	18.8	7.9	86	68
ND48-1	48	12	8	22.8	9.6	128	81
ND60-1	60	12	8	32.2	13.9	285	120
ND75-1	75	17	10	35	17.9	577	178

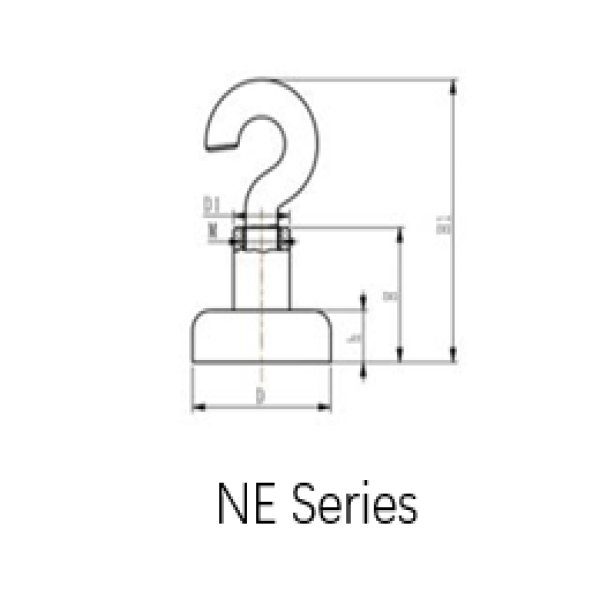

Model	D	D1	M	h	H	H1	Weight(g)	Breakaway(Kg)
NE16	16	6.5	4	5.2	13.5	35.7	12	8
NE20	20	6.5	4	7.2	15	37.8	21	12
NE25	25	7.5	5	7.7	17	44.9	33	22
NE32	32	10	6	7.8	18	47.8	54	34
NE36	36	10	6	7.6	18.5	49.8	64	41
NE40	40	10	6	7.9	18.8	50.1	87	51
NE42	42	10	6	8.8	18.8	50	93	68
NE48	48	12	8	10.8	24	61	150	81
NE60	60	12	8	15	28	66	283	120
NE75	75	17	10	17.8	35	84	555	178
NE16-1	16	6.5	4	5.2	13.5	36	13	8
NE20-1	20	6.5	4	6	13.8	36.3	18	12
NE25-1	25	7.5	5	6.9	16.2	43.7	32	22
NE32-1	32	10	6	6.8	17	48.3	54	34
NE36-1	36	10	6	6.9	17.8	49.1	67	41
NE42-1	42	10	6	7.9	18.8	50.1	95	68
NE48-1	48	12	8	9.6	22.8	59.8	148	81
NE60-1	60	12	8	13.9	32.2	69.2	305	120
NE75-1	75	17	10	17.9	35	84	627	178

Model	D	D1	M	h	H	H1	Weight(g)	Breakaway(Kg)
NF6	6	4.5	3	4.7	10.5	32.5	4	0.5
NF8	8	4.5	3	4.7	11.5	33.5	4	1
NF10	10	6	3	5	12.5	34.5	5	1.5
NF12	12	6	3	5	12.5	34.5	7	3
NF14	14	6.5	4	4.5	12.5	35	10	5
NF16	16	6.5	4	5.2	13.5	35.7	12	8
NF18	18	6.5	4	6	13.8	36.3	16	10
NF20	20	6.5	4	7.2	15	37.8	21	12
NF22	22	6.5	4	6.9	16.2	38.7	24	18
NF25	25	7.5	5	7.7	17	44.9	33	22
NF28	28	7.5	5	6.4	15.7	43.2	36	26
NF30	30	7.5	5	6.4	16.6	44.1	41	29
NF32	32	10	6	7.8	18	47.8	54	34
NF34	34	10	6	7.3	17.5	48.8	61	37
NF36	36	10	6	7.6	18.5	49.8	64	41
NF38	38	10	6	7.4	18.3	49.6	77	46
NF40	40	10	6	7.9	18.8	50.1	87	51
NF42	42	10	6	8.8	18.8	50	93	68
NF45	45	12	8	8.7	19.6	56.6	123	75
NF48	48	12	8	10.8	24	61	150	81
NF50	50	12	8	10.7	25.6	62.6	173	91
NF55	55	12	8	12	29.2	66.2	231	102
NF60	60	12	8	15	28	66	283	120
NF65	65	12	8	14.9	32.2	69.2	378	137
NF70	70	17	10	16.9	34.2	83.2	531	153
NF75	75	17	10	17.8	35	84	555	178
NF80	80	17	10	19	36.2	85.2	744	200
NF90	90	17	10	18	36.2	85.2	904	280

Product label	Strong Magnets, Permanent Magnets, Neodymium Magnets
Production Capability	50 Tons per month
Customized Service	Dimension, >200 units Shape, >200 units Package, >1000 boxes Logo, >1000 units
Packing form	50-1000pcs per box, depends on sizes. box size: 15x10x8cm 16 boxes per carton with isolated magnetic sheets. Carton size: 38x26x22cm, 20kg 15x10x8cm, 5kg(smaller)
Shipping method	International Express, Sea freight, Air freight
Lead time	<1000 units, 7-15 days. <10000 units, 15-25 days. <100000 units, 25-30 days.
Accept payment method	L/C, TT
Sample	Available
