Customized N52 Countersunk Neodymium Magnet Trapezoid Magnets with Hole

Hits :
0
Updatetime :
2023-11-08
Material :
Neodymium
Type :
Permanent
Feature :
Strong

contact now

description

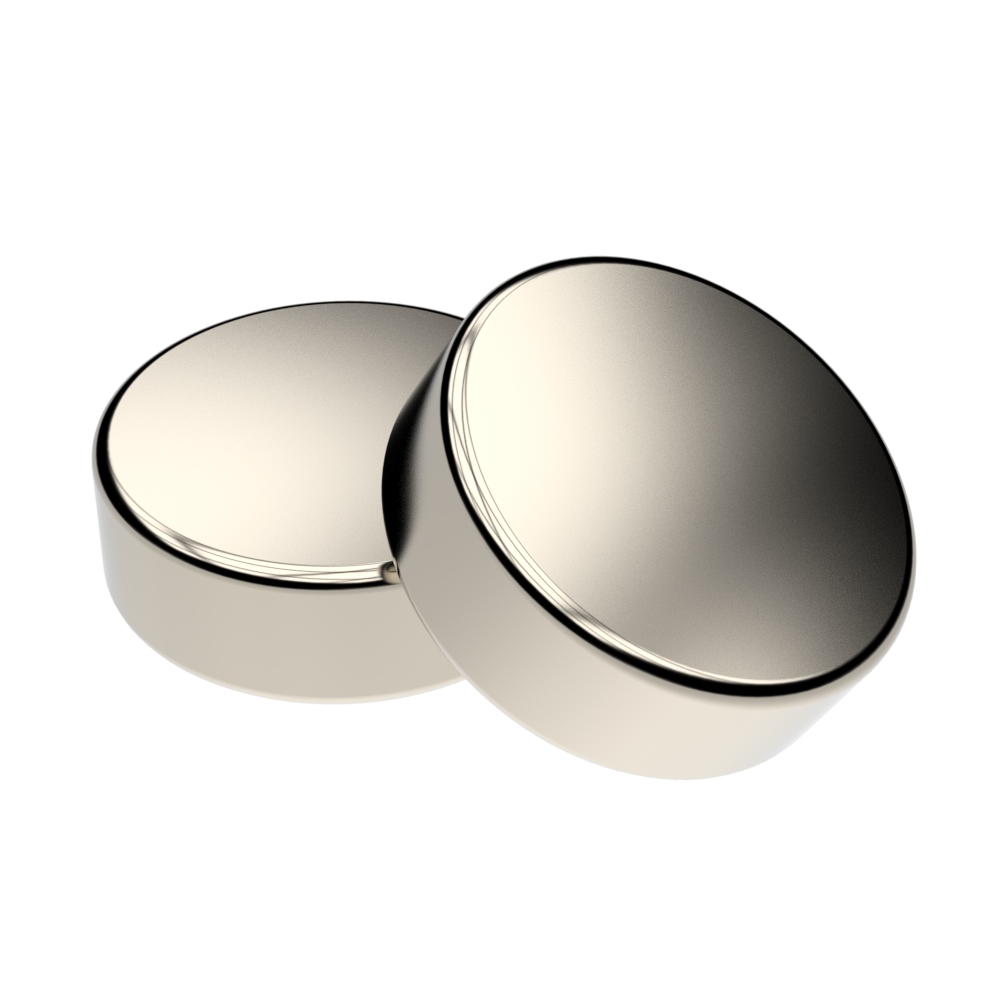

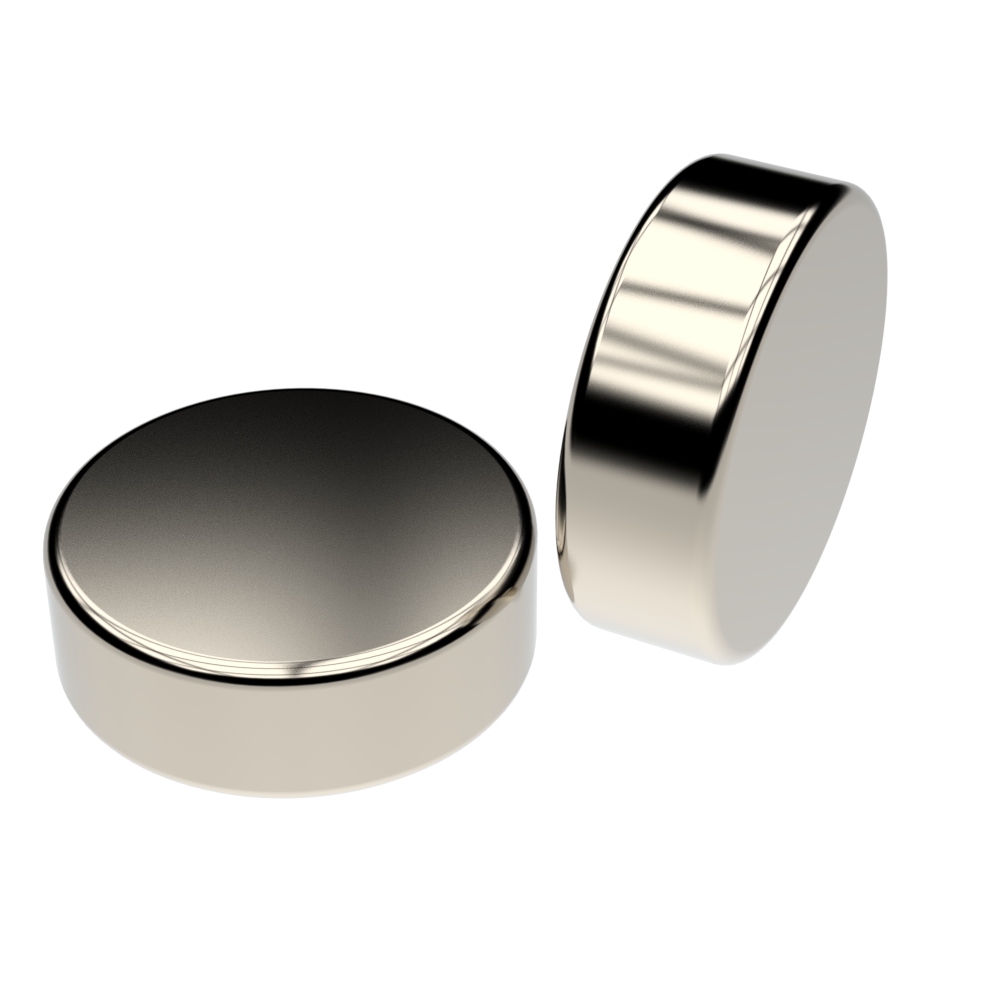

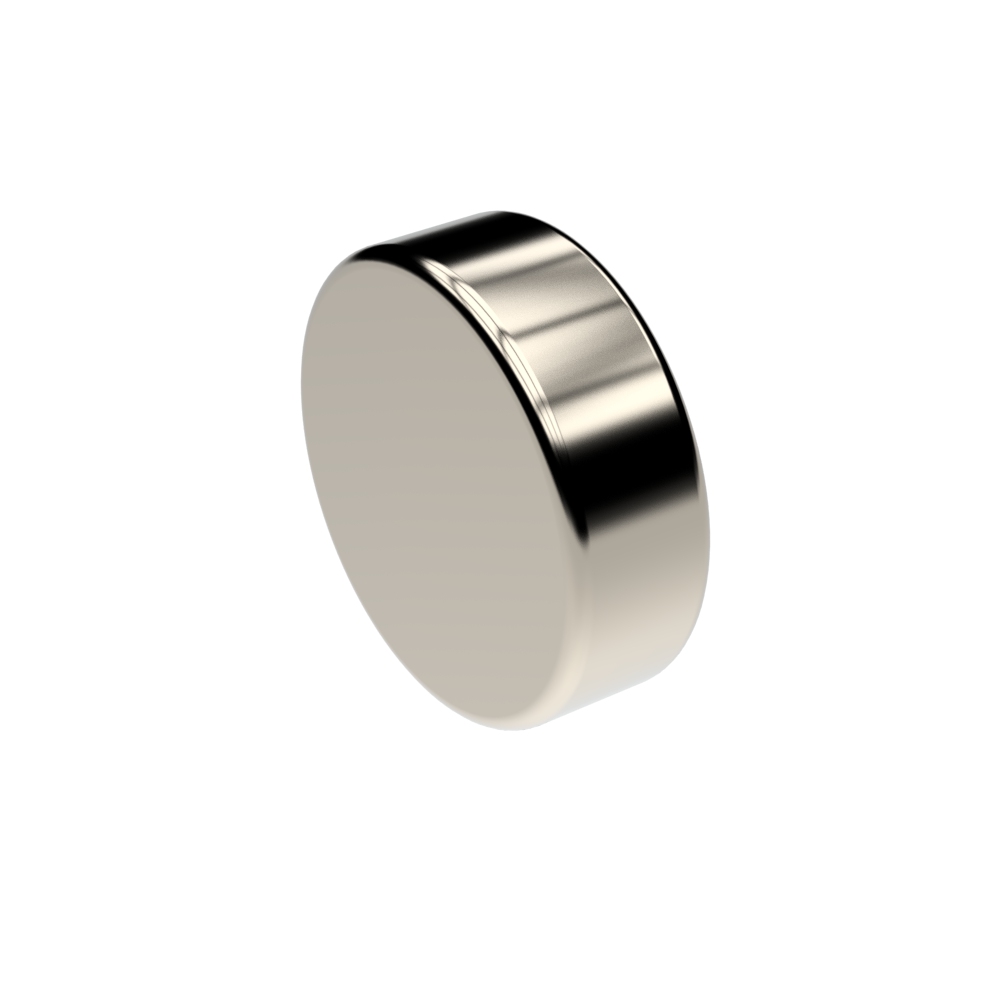

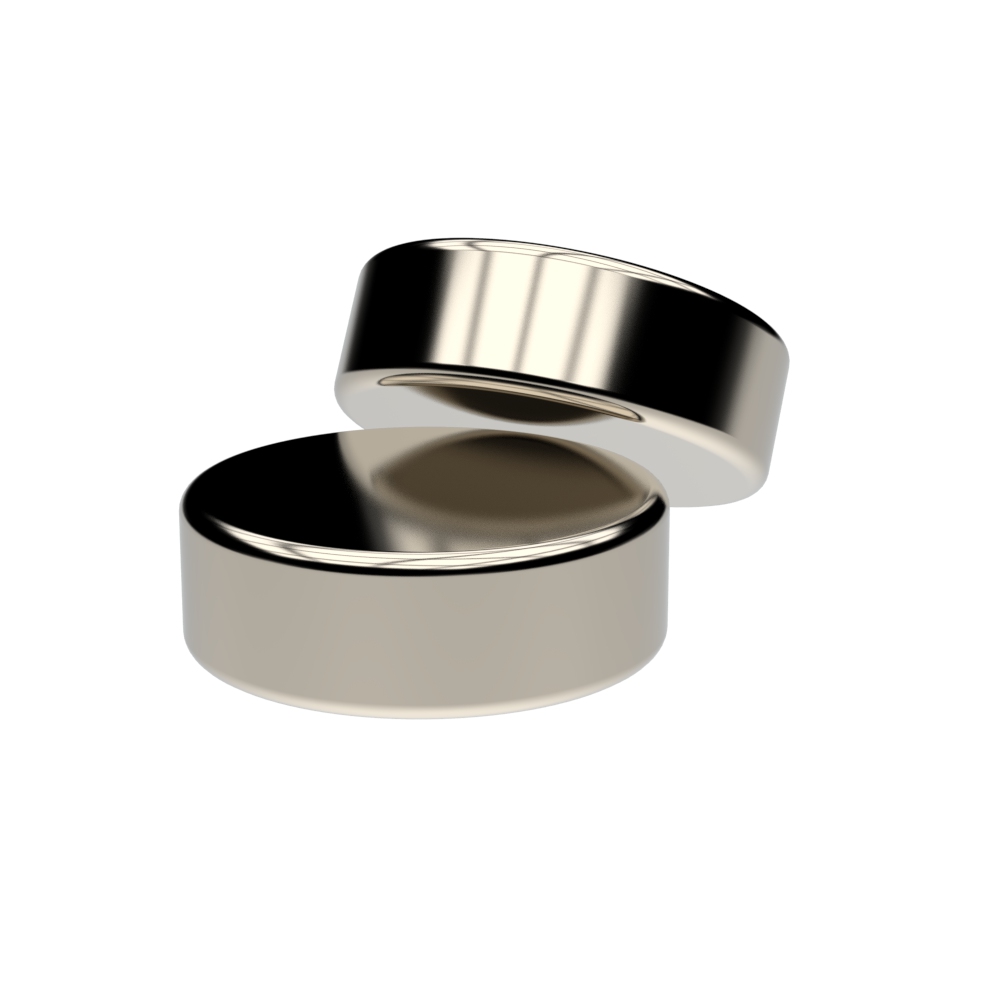

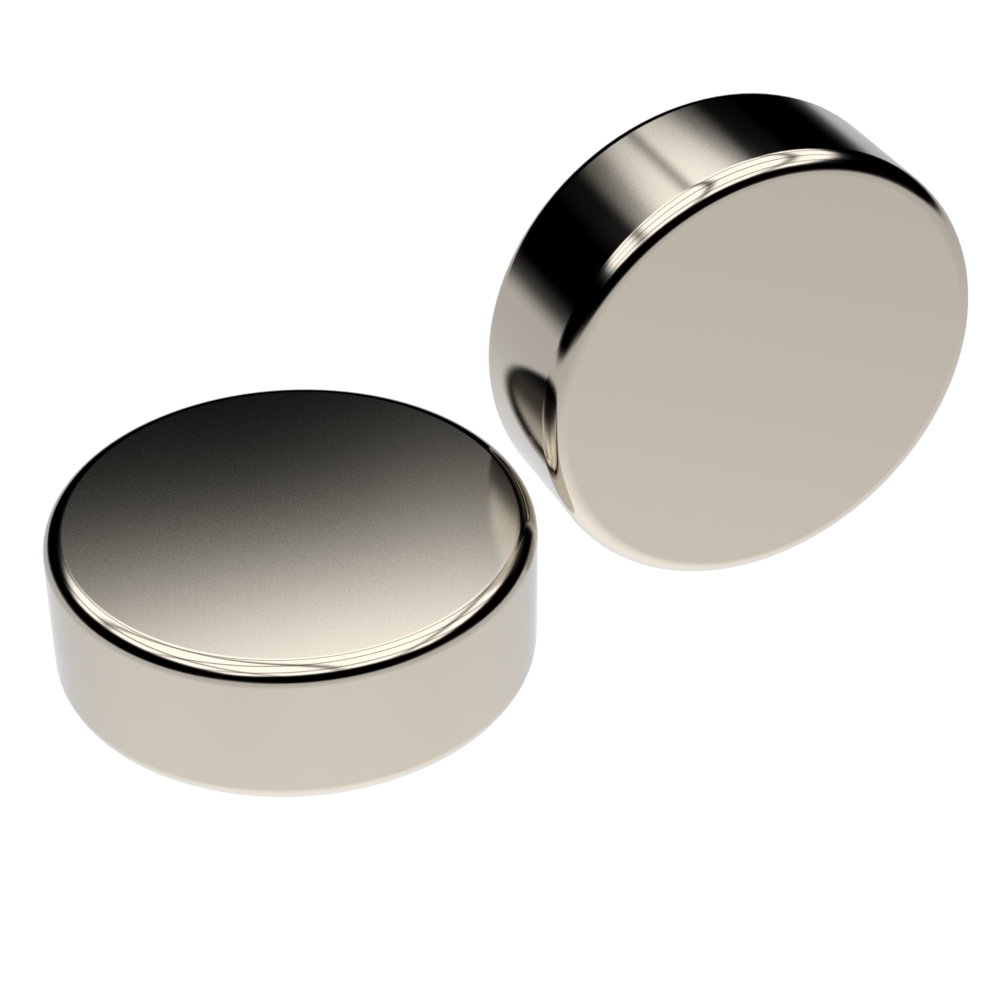

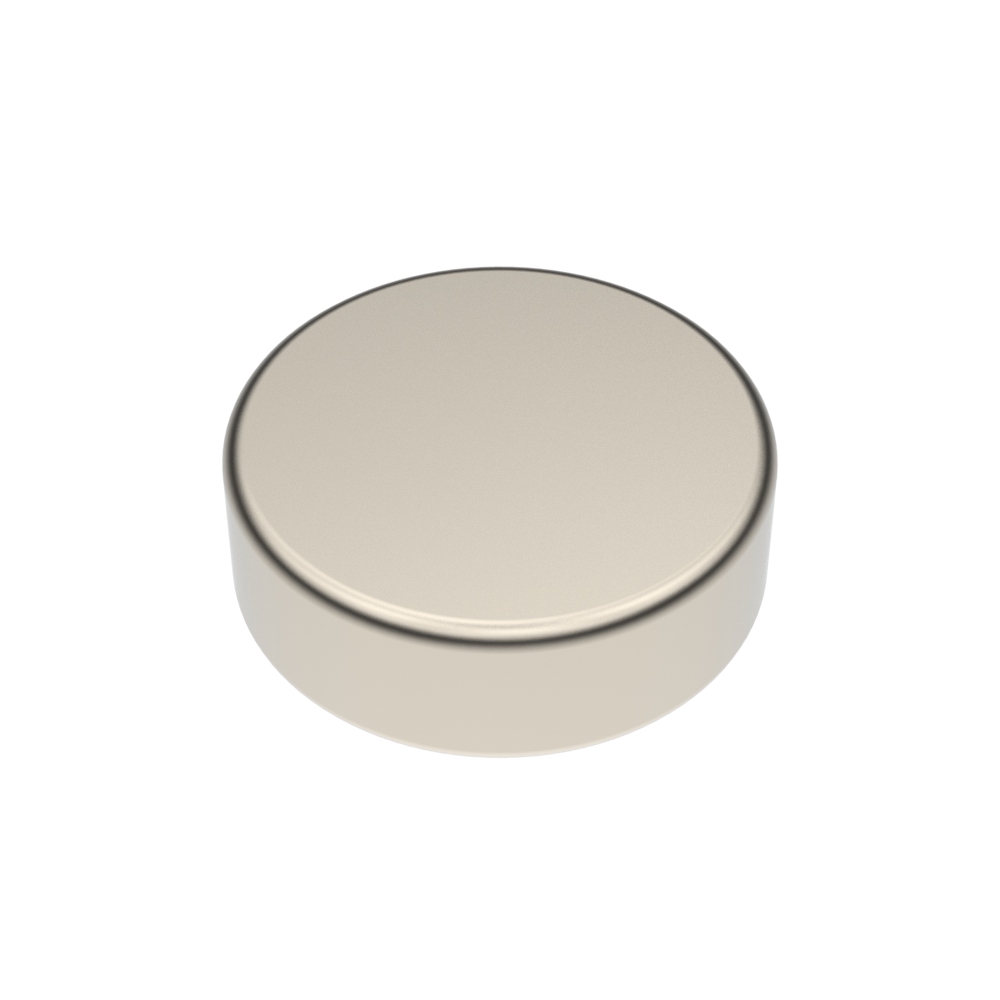

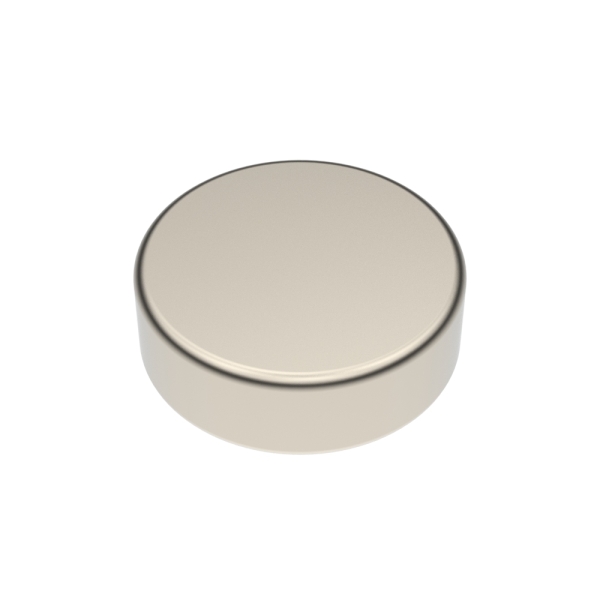

This kind of disc (cylindrical) magnet is the most widely used and the most cost-effective. Since there are fewer processing steps, our delivery times are also fast. Generally, the delivery time is ten to fifteen days for orders less than five thousands , fifteen -twenty-two days for orders less than fifty thousands pieces, and twenty-five to thirty-five days for orders less than one hundred thousands pieces.
Our main product is Neodymium magnets, which are divided into seven grades according to the ambient working temperature:
N thirty-five to N fifty-two , below eighty degrees;
N thirty-five M to N fifty-two M, below one hundred degrees, M means medium;
N thirty H to N fifty H, below 120 degrees, H means high;
N thirty SH to N forty-eight SH, below one hundred fifty degrees, SH means super high;
N twenty-eight UH to N42UH, below one hundred eighty degrees, UH means ultra-high;
N twenty-eight EH to N thirty-five EH, below two hundred degrees, EH means extremely high;
N twenty-eight AH to N thirty-five AH, below two hundred twenty degrees, AH means absolutely high;

Our processing size range is: diameter one millimeter to diameter one hundred eighty millimeters. Since there is not much demand for large-sized magnets, we no longer have materials larger than thirty millimeters in diameter. If you need a size larger than it, the delivery time takes twenty-five working days. So, the normal size range is within diameter three millimeters to thirty millimeters , and thickness from one millimeter to sixty-five millimeters.
The magnetic field direction of the disc is generally the thickness direction, which is also called the axial direction. This is the most co millimeters on, and some customers require radial.
To sum up, we need to know the quantity, grade, shape, size, and magnetic field direction of the magnets you purchased. It would be best if you have drawings of the parts.

Product label	Strong Magnets, Permanent Magnets, Neodymium Magnets
Production Capability	50 Tons per month
Customized Service	Dimension, >200 units Shape, >200 units Package, >1000 boxes Logo, >1000 units
Packing form	50-1000pcs per box, depends on sizes. box size: 15x10x8cm 16 boxes per carton with isolated magnetic sheets. Carton size: 38x26x22cm, 20kg 15x10x8cm, 5kg(smaller)
Shipping method	International Express, Sea freight, Air freight
Lead time	<1000 units, 7-15 days. <10000 units, 15-25 days. <100000 units, 25-30 days.
Accept payment method	L/C, TT
Sample	Available

Related Tags :

N52 NdFeB thickness Neodymium Car magnet coil magnets DC motor magnet BLDC magnet
